2.3.5.6. Modelmanager - Configuration

In the following the most important settings are explained, which possibly can be adjusted:

Setting in configuration file ifacecommon.cfg:

Activation

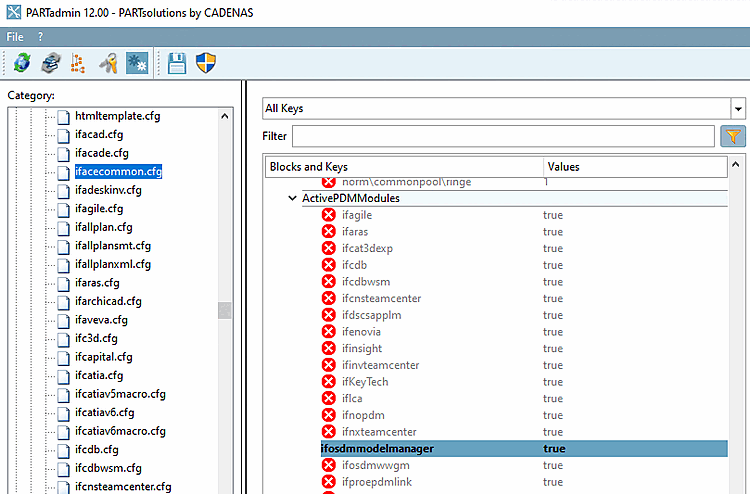

The model manager is activated in the configuration file ifacecommon.cfg.
```
[ActivePDMModules]
ifosdmmodelmanager=true
```

Settings in the configuration file ifosdmmodelmanager.cfg:

In which Modelmanager class are PARTsolutions parts stored?
```
[CreationOptions]
MM_ClassName(is3d)=LIBRARY_3D
```
In which Modelmanager class are PARTsolutions NativeCheckin parts stored?
```
[CreationOptions]
MM_ClassName(isNat)=MODEL_3D
```
Attribute mapping
For the attribute mapping there are two different attributes available:
- MASTERDATA
  These attributes are stored directly in the Modelmanager.
- Library_3d
  These attributes are stored in the part.
Attribute mapping is disabled by default.
The [CreationOptions] block is not visible in PARTadmin. Have a look at the entries with the strings "MASTERDATA" and "LIBRARY_3D" and examples directly in Notepad.
