5.1.4.2.3. Direct online linking of the LinkDB to the ERP-DB

5.1.4.2. Data transfer and linkages

5.1.4.2.3. Direct online linking of the LinkDB to the ERP-DB

5.1.4.2.3. Direct online linking of the LinkDB to the ERP-DB

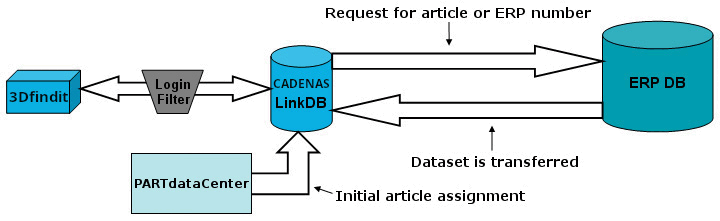

With regard to ERP data, only the article no. or ERP no. of the respective part is entered in the LinkDB

The required data set is only retrieved from the ERP database when the user requests it in ENTERPRISE 3Dfindit

PARTdataCenter is required for the initial filling.

Advantage: Complete data record is always imported from the ERP database in real time

Disadvantage: Calling can take longer with a large number of displayed parts

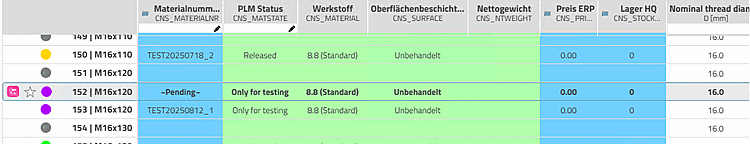

The following screenshot shows an example:

It is possible to display any useful information in 3Dfindit as an additional column.
The direct online query as a linkage method is the most timely query option and the most effective in the case of a stock query. The other linking methods can of course also display the data.
The ENTERPRISE 3Dfindit user sees the fields that are important to him for decision-making.
