9.2.4. System info/Support

9.2. Support

9.2.4. System info/Support

9.2.4. System info/Support

9.2.4.1. Support request
9.2.4.2. Save to file
9.2.4.3. Support tools

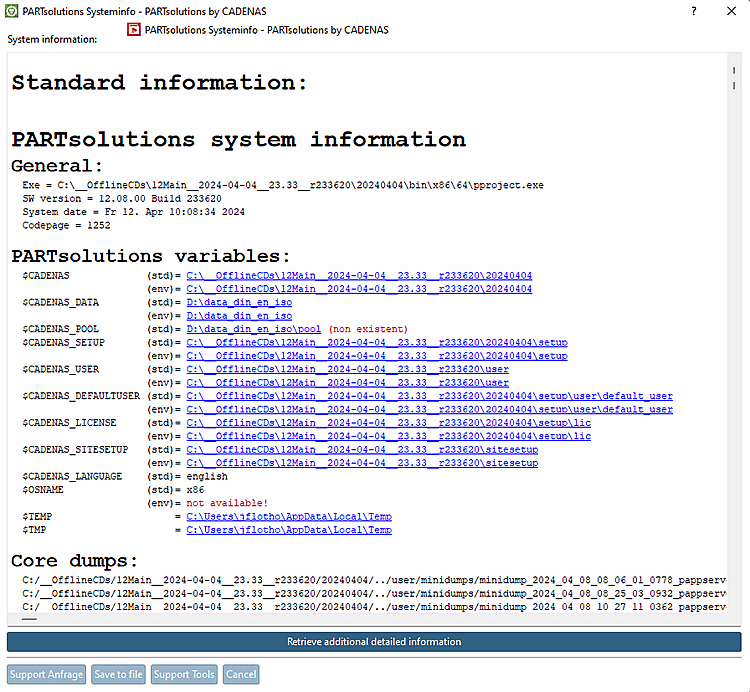

Use Help or ? Menu > Systeminfo/Support [System info/Support] (or F7 key) to open the 3Dfindit Systeminfo - 3Dfindit by CADENAS dialog window.

Here all information relevant to Support is shown.

Among others:

General information such as version with Build data for example
3Dfindit variables(see tip below)
- $CADENAS
- $CADENAS_DATA
- $CADENAS_DATA/pool
- $CADENAS_CLIENT
- $CADENAS_SETUP
- $CADENAS_USER
- $CADENAS_DEFAULTUSER
- $CADENAS_LICENSE
- $CADENAS_VDAPS
- $CADENAS_SITESETUP
- $CADENAS_LANGUAGE
- $OSNAME
- $TMP
Operating system
Browser
Environment variables
Installed CAD systems
Driver and database information
License information
Network information
OpenGL information

	Tip
	The variables are linked to the corresponding directories. Simply click on it to get there. (You must have the administrative rights for the respective directory.)

The functions of the buttons at the bottom of the page are described in the following sections.
