4.5.1.2.2.1. Installation type

There are two options under Destination folder [Destination Folder] -> Installation method:

Software Local, data and setup from an existing server
If a server installation has been performed and the directories CADENAS_DATA and CADENAS_SITESETUP have been shared there, then a client can be installed where the software is locally and the other directories are referenced.

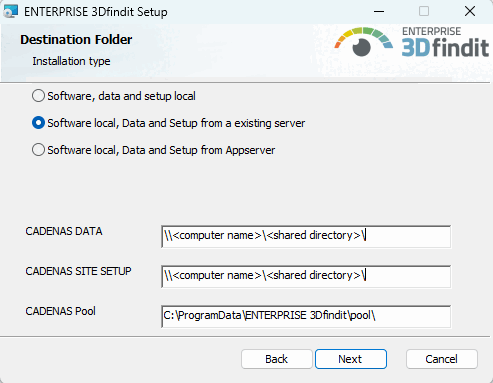

Software local, Data and Setup from existing server
Software local, Data and Setup from Appserver:
To set up a client with a direct connection to an app server as part of a client-server installation, select the option Software local, data and setup from app server [Software Local, data and setup from the app server] under Target folder [Destination Folder] in the installation routine and enter the app server URL.

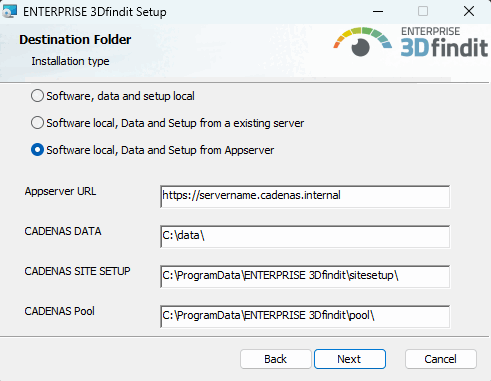

Software Local, data and setup from the app server

Example (excerpt from start.env):
```
CADENAS_APPSERVER=https://SERVERNAME.cadenas.internal?mzcomsport=9025&sslport=447
```
Note
When using the standard port, these do not need to be specified.

or (for tunneling)
```
CADENAS_APPSERVER=https://SEVERNAME.cadenas.internal?sslport=447&ws=1&flm=1
```
CADENAS_APPSERVER (URL with parameters)
Example:
```
CADENAS_APPSERVER=https://<servername.domain>?<param1>=<value1>&<param2>=<value2>...
```
The following parameters are possible: (name, default value if not specified, meaning)
- port=9020 => http port on server
- sslport=9022 => ssl port on server
- mzcomport=9021 => mzcom service port
- mzcomsport=9023 => ssl mzcom service port
- noproxy=1 => Do not use a proxy to access the server
- proxyAddr= => if specified, proxy address to be used if noproxy=0
- remoteFileSystem=1 => mount CADENAS_DATA via rfs from server
- remoteSetup=0 (default) => CADENAS_SETUP local | 1 => mount CADENAS_SETUP via rfs from server
- remoteSiteSetup=1 => mount CADENAS_SITESETUP via rfs from server
- remoteDB=1 => Use DB connection with remote access via app server
- remotepool=1 => mount $CADENAS_DATA/pool and $CADENAS_DATA/shared from Appserver (if =0, they are placed in the local data directory)
- writeable=1 => mount rfs in write mode and let the server decide if writing is allowed... (if =0 all mounts are readonly...)
- httpCacheSize=5000 => Size of rfs cache in MB ... Default is a maximum of 5GB in $CADENAS_USER/rfs
