The parameters for horizontal, vertical and parallel dimensioning are nearly identical. Differences are pointed out.
HORIZONTAL:

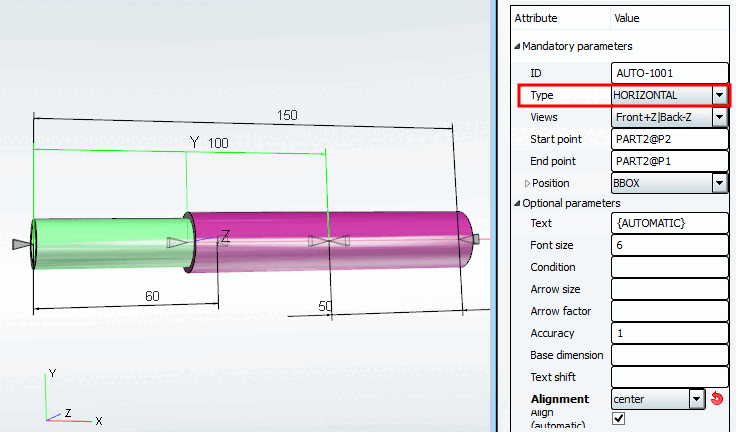

Example: Horizontal dimensioning 3D

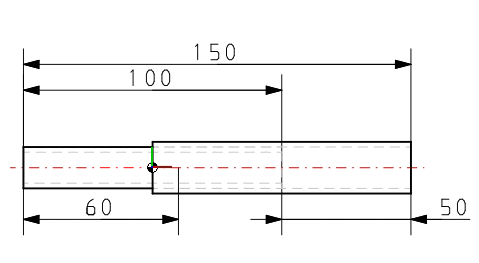

Example: Horizontal dimensioning 2D
VERTICAL:

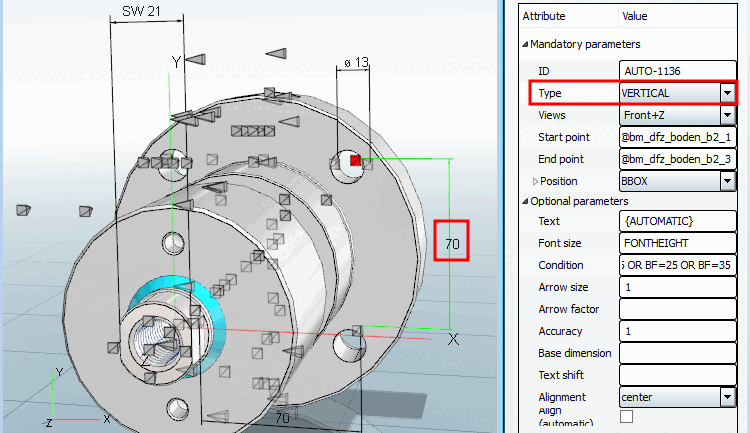

Example vertical dimensioning 3D

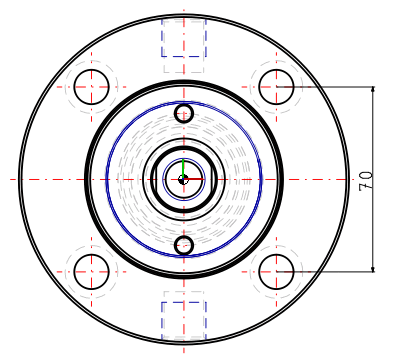

Example vertical dimensioning 2D
PARALLEL:

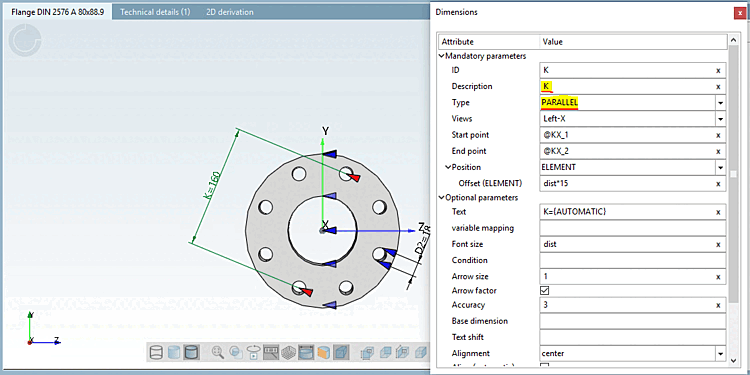

Use the parallel dimensioning, if the measuring line is not orthogonal to the coordinate system.
