7.6.2.12.6.3. Edges resulting from Blends

Edges resulting from blends can not be blended.

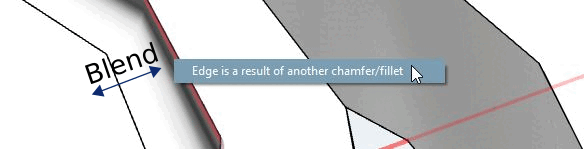

Message "Edge has been created by another chamfer/rounding [Edge is a result of another chamfer/fillet] "

Message "Edge has been created by another chamfer/rounding [Edge is a result of another chamfer/fillet] "
