5.12.12.1.3.2. Axes orientation at Q&S import

In order to avoid the need of later manipulation, the correct orientation of axes should already be set for the Q&S import.

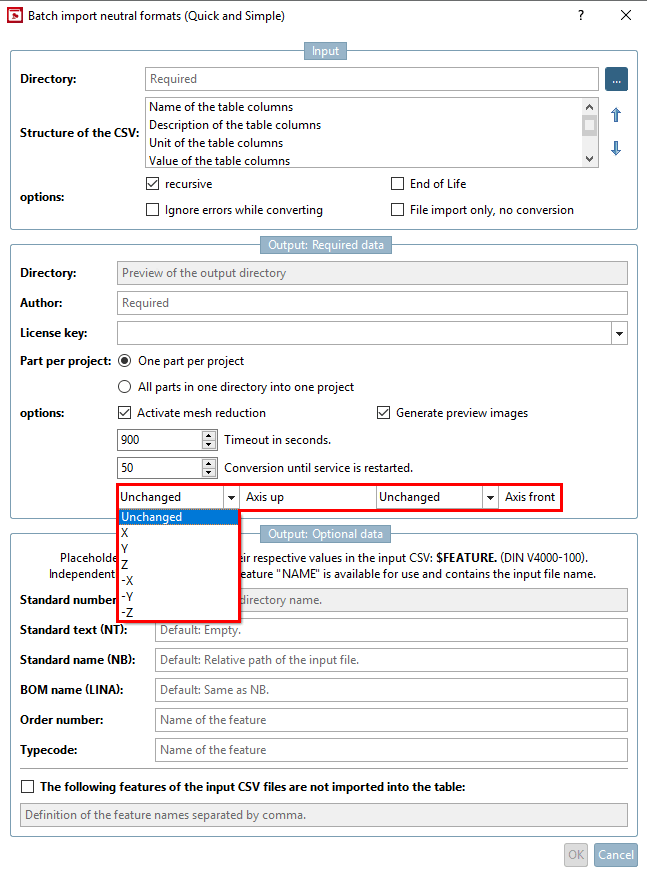

Batch import neutral formats (Quick and Simple) -> options -> Axis up / Axis front

Batch import neutral formats (Quick and Simple) -> options -> Axis up / Axis front
