Roundings/bevels may look different in the individual CAD systems than in ENTERPRISE 3Dfindit and PARTdesigner.

PARTdesigner / PARTdataManager

Inventor 2018

SolidEdge ST10

SolidWorks 2017

Creo 4.0

Edge/Corner Chamfer in Creo 4.0

Even within a single CAD system the depiction may differ (see example of Creo).

Creo 4.0: Edge Chamfer (default)

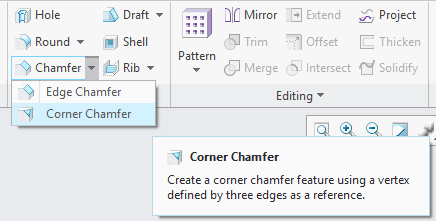

Creo 4.0 setting option; Edge Chamfer / Corner Chamfer

Creo 4.0: Corner Chamfer

In the case of a blend bevel feature with 3 edges that meet in a corner, a warning is issued when testing the part [Test part] or test meta, as the display may differ in some CAD systems.

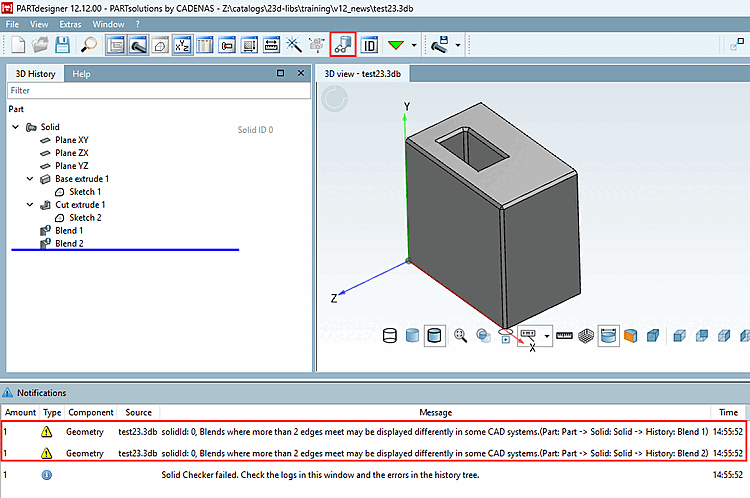

Example: Cuboid with blend chamfer feature on 3 inner and 3 outer edges
