3.5.4.2.3. Shared
Parameters 3.5.4.2.3.5. FCSI
attributes shared parameters |  |
| Prev | Next |

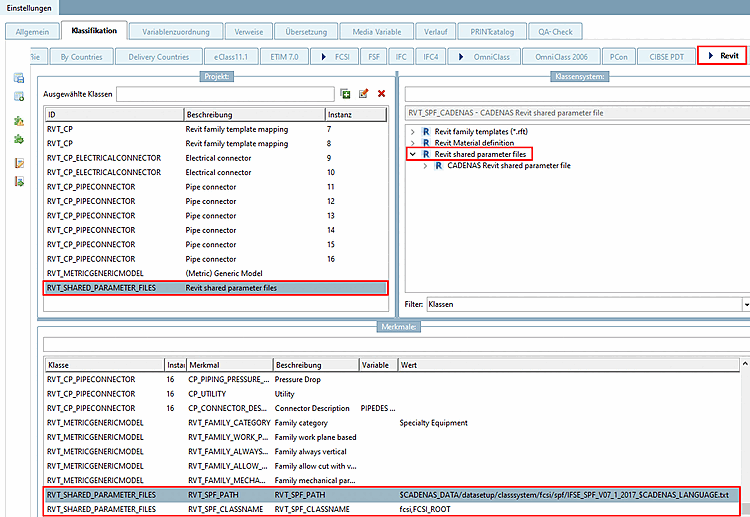

For the food market (FCSI) shared parameters, the user must mainly classify the Revit shared parameter files class, which only contains two characteristics:
RVT_SPF_PATH: Refers to the corresponding file in which the shared parameters of the desired classification (FCSI in this example) are located.
D:\cadenas\partsolutions\data\datasetup\classsystem\fcsi\spf\IFSE_SPF_V07_1_2017_$CADENAS_LANGUAGE..txt
RVT_SPF_CLASSNAME: Contains two parameters separated by commas, 1. the classification, 2. the class
The further specific mapping of attributes is done in the FCSI classification.
The shared parameter file is saved at ...\data\datasetup\classsystem\fcsi.

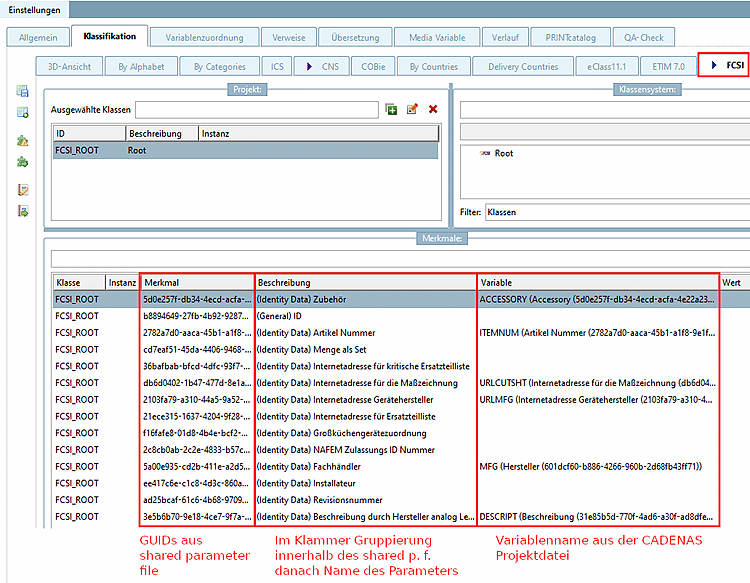

In this example, the projects are classified using the FCSI classification. The individual features (GUIDs from the shared parameter file) have been assigned the corresponding CADENAS variables.
