5.18.2.2. Part

All <part> children are listed here with their specifying child elements.

Definition

<part id="...">
  <type>part|assembly|drill|pseudo</type>
  <category>...</category>
  <color r="0..255" g="0..255" b="0..255" />
  <path>...</path>
  <nnpath>...</nnpath>

  <bom category="...">
    <splittable>...</splittable>
  </bom>

  <vars>
    <var>
      <value name="name">value</value>
    </var>
  </vars>

  <cp name="..." visible="..." type="..." />
</part>

part

Attribute:

id: Unique identifier

	Note
	Referenced under <conparts> -> <connection>.

Child elements:

type
Values:
- part: If the project that is given for the path is a part
- assembly: If the project that is given in the path is an assembly
category
Identifier referencing categories.

Note
Referenced under <categories> to build the tree structure in the Configurator
path
Sets the path of the .prj-file of the part (&CADENAS_DATA)

Note
Use a relative path statement:
Example:
Project: C:\programme\cadenas\data\23dlibs\...catalog...name...\rohre\rohr.prj
Path: rohre\rohr.prj

Note
NN, NT information is read out from there.
nnpath
Relative path to the project.

Note
Only used with assemblies. Read additional main table information.
bom category
Identifier referencing bom category.
vars
To define additional variables. It is also used to init the table.
Child element:
- var
  Any number of elements.
  Attribute:
  - name : name of the variable; value: value of the variable
cp
Attributes:
- name: Name of the connection point

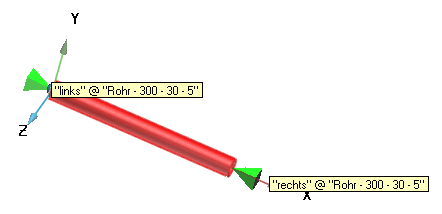

  In the exemplifying picture below the names are "links " and "rechts ".

  Note
  Tooltip structure:
  connection point name @ part name - table parameters

  Note
  XML syntax with parts: Just the connection point name
  XML syntax with assemblies: Part name @ connection point name
- visible: In the Configurator the displayed name of the connection point under Details.
- type: group type of connection types

	Note
Referenced under <categories> to build the tree structure in the Configurator

	Note
Use a relative path statement: Example: Project: C:\programme\cadenas\data\23dlibs\...catalog...name...\rohre\rohr.prj Path: rohre\rohr.prj

	Note
NN, NT information is read out from there.

	Note
Only used with assemblies. Read additional main table information.

	Note
Tooltip structure: connection point name @ part name - table parameters

	Note
XML syntax with parts: Just the connection point name XML syntax with assemblies: Part name @ connection point name

Example

<part id="65humlenk" >
  <type>assembly</type>
  <category>transport</category>
  <path>4_transporttechnik\1_stretch_line_sl\4_baubreite_sl_065\3_umlenkungen
      \assemblies\2_h_umlenkung_asmcfg.prj</path>
  <nnpath>4_transporttechnik\1_stretch_line_sl\4_baubreite_sl_065\3_umlenkungen
      \2_h_umlenkung_asmtab.prj</nnpath>

  <cp name="HUMLENKUNGWINK@start0" visible="Vorne" type="sl65_start_C" />
  <cp name="HUMLENKUNGWINK@end0" visible="Hinten" type="sl65_end_C" />

  <bom category="transport" />
  <vars>
     <value name="BAUBREITE">65</value>
  </vars>
</part>
