7.6.4.7.  Mirror

[Note]Note

When using Mirror, dependencies are possibly created, so may be there is no simple "Undo". Please regard the dependencies when deleting automatically created planes.

In order to mirror an object at the base plane, open via the Mirror context menu-> ...-plane.

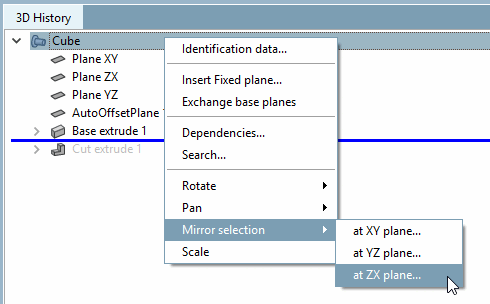

Mirroring at ZX plane

Mirroring at ZX plane

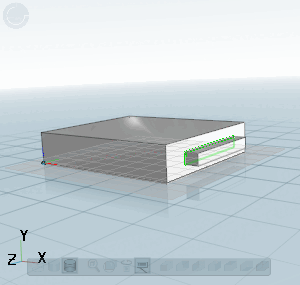

Before mirroring at plane ZX

Before mirroring at plane ZX

Offset 0

Offset 0

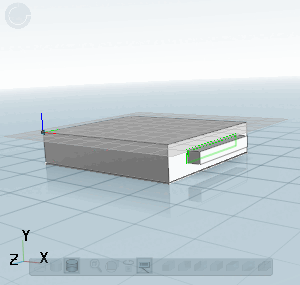

After mirroring at plane ZX

After mirroring at plane ZX

If you want to set an additional offset, enter the desired value under Offset.

Offset 10

Offset 10

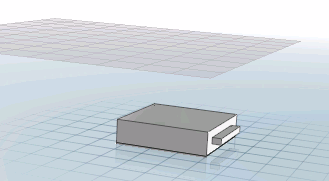

Mirroring with offset

Mirroring with offset
