5.9.18.3.1. Inherit datasheet PDF template by Copy & Paste

Initial situation: A datasheet PDF template, which has been created for a test project in PARTtemplateDesigner, shall be transmitted to the catalog root element.

  1. Select tabbed page Media Variable.

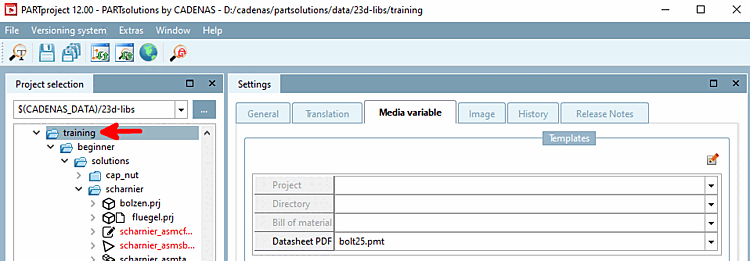

  2. Under Project selection, select the project containing the template to be copied.

  3. In the line Datasheet PDF, copy the template by Ctrl + C.

  4. Select the catalog root folder (or any other subfolder or project)

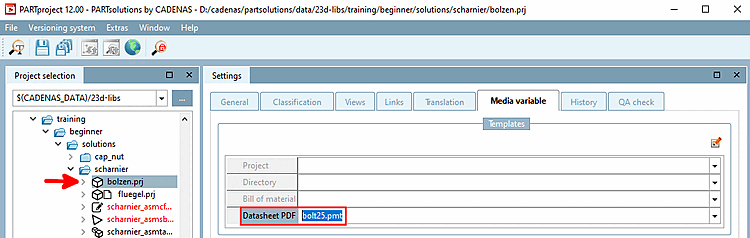

  5. Insert the template in the line Datasheet PDF with Ctrl + V.

  6. Save in PARTproject.
