7.16.3. Radial dimensioning

7.16.3.1. Mandatory parameters
7.16.3.2. Optional parameters

Type: RADIAL

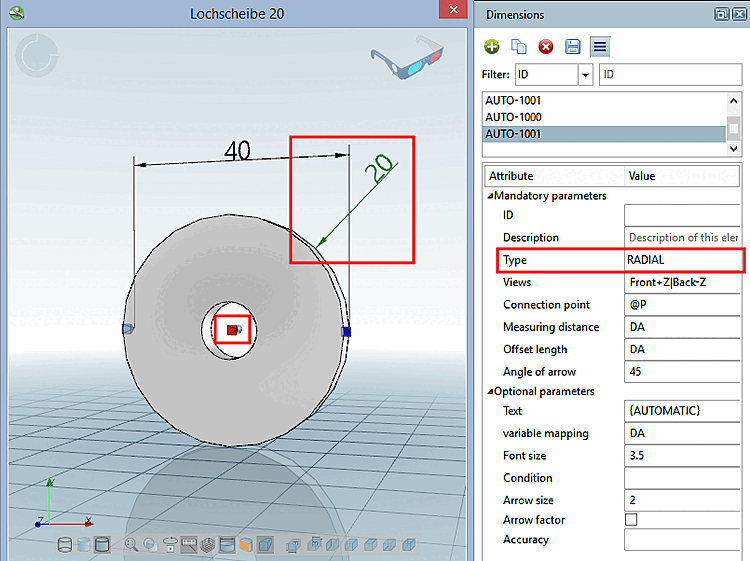

In this example the outer diameter is shown with a dimensioning of 20

In this example the outer diameter is shown with a dimensioning of 20

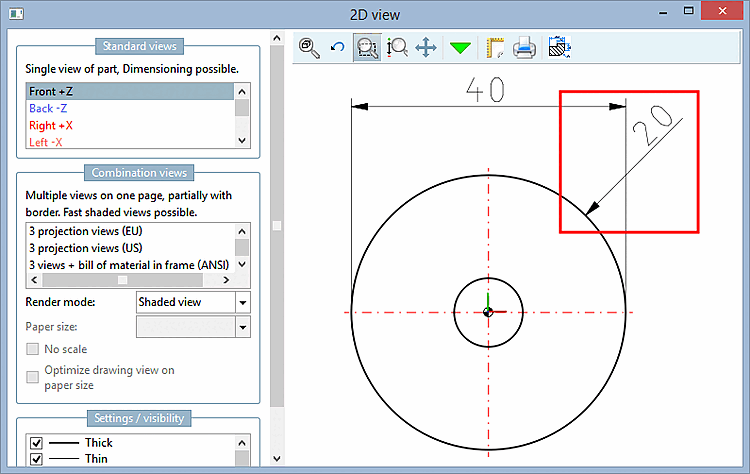

Radial dimensioning in 2D

Radial dimensioning in 2D
