5.12.6.2. Assign characteristics

As soon as a class has been assigned, the corresponding characteristics are automatically displayed below in the Characteristics [Attributes] dialog area.

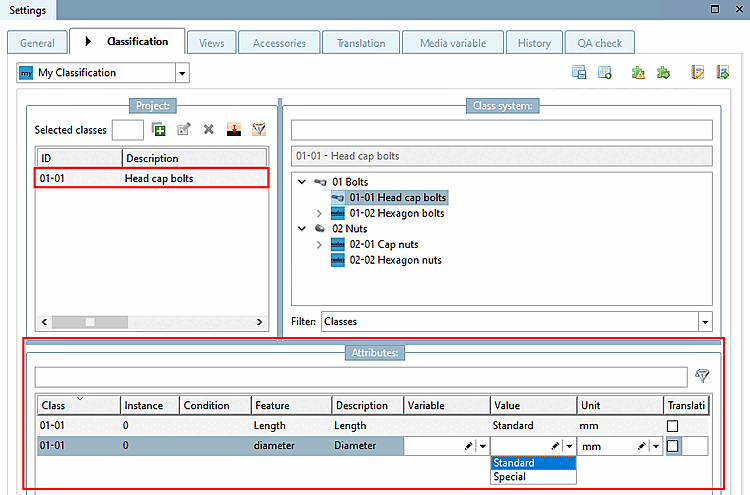

"Features [Attributes]" area

"Features [Attributes]" area

  1. Select the desired class.

    -> The corresponding characteristics are displayed.

  2. Select the desired characteristic.

  3. Assign a variable [Variable] or a fixed value [Value] to the selected characteristic:

    • Variable

      Select the corresponding variable in the list field.

    • Value

      Enter a fixed value or select the desired option from the list box.

    [Note]Note

    Only one of the options is available at a time!

  4. Save You in PARTproject .
