7.8.12.2. Coloring in the feature algorithm window
You can create or edit the algorithm in the Characteristics algorithm [Attribute algorithm] dialog box. To give you a better overview, the texts have different colors, similar to a development environment.
The following colors are available:
Black: Statements and operators
Light blue: Variables recognized by the system
Dark blue: Variables not recognized by the system
Green: Text between two quotation marks

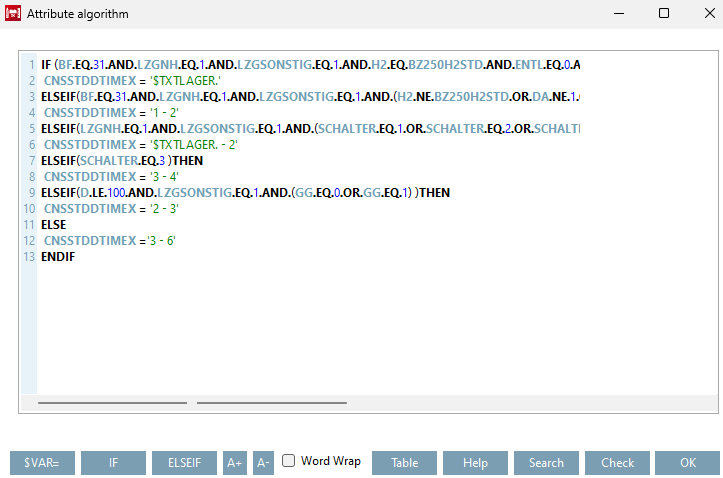

![Feature algorithm [Attribute algorithm] dialog box](resources/img/img_6ade59cfedad4978847b0801dcc1cd3d.png)
