5.12.9.1.1.  Set connection point

For the placing of electrical engineering components in CAD the following shall apply:

I. Octant has positive x,y and z axis

I. Octant has positive x,y and z axis

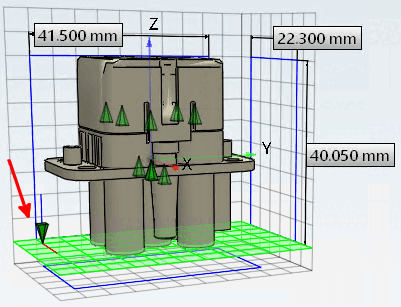

Connection point at left, lower, back edge of bounding box

Connection point at left, lower, back edge of bounding box

In most cases, it will be necessary to move the component in the direction of the X, Y and Z axes in order to achieve correct component placement.

You can implement translation and rotation using the Absolute plane [Fixed plane] dialog.

In the following example illustration, you can see a component with the correct alignment (Z pointing upwards), so that only one shift needs to be made (see entries under Point [Base point] ). As the Z-axis is pointing upwards, no axis rotations need to be made. The input fields under X-axis [X axis] retain the default values 1,0,0. The input fields under Y-axis [Y axis] retain the default values 0,1,0.

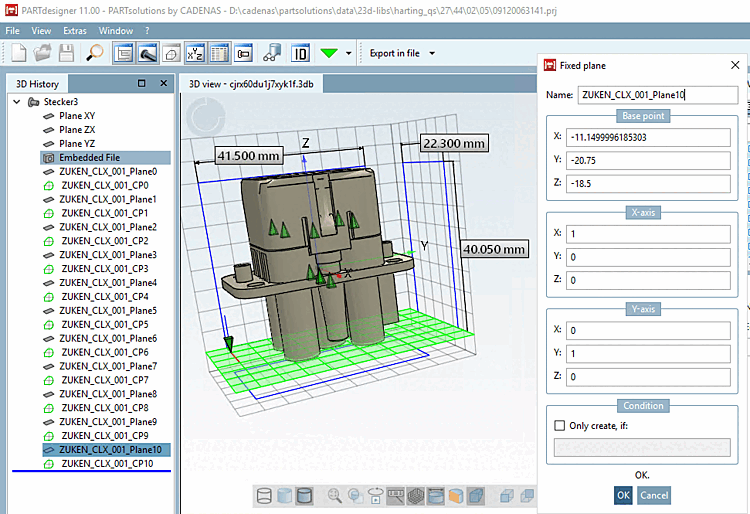

The point of origin [Base point] of the absolute plane is in the lower left, rear corner of the bounding box

The point of origin [Base point] of the absolute plane is in the lower left, rear corner of the bounding box

The connection point can be set with angle [Angle] 0, as no rotation is to be carried out, or rotations are realized via the plane.

[Note]Note

The name of connection point can freely be chosen (in this example "CP_Orientation").

The coordinates of the connection point under "Position [Position] " can be left at 0.0 so that the connection point is at the point of origin [Base point] of the plane.

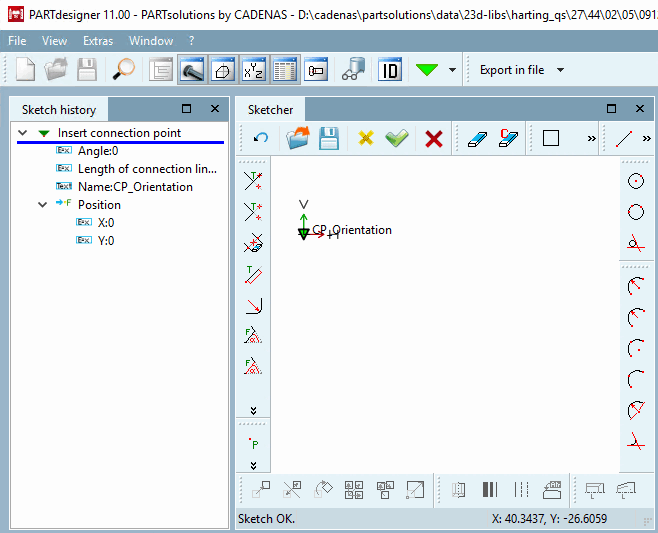

Set connection point

Set connection point

[Note]Note

Alternatively, a necessary shift can also be made here in the sketch instead of via the Absolute plane [Fixed plane] -> Point [Base point] dialog.

For components with incorrect orientation, make appropriate adjustments in the Absolute plane [Fixed plane] dialog under X-axis [X axis] and Y-axis [Y axis].

After the transformation (rotation + displacement) applies:

Example with rotation: The transformation happens with 2 rotations.

The original X-axis [X axis] is placed on the Z-axis (Z=1) and then the original Y-axis [Y axis] is placed on the X-axis (X=1).

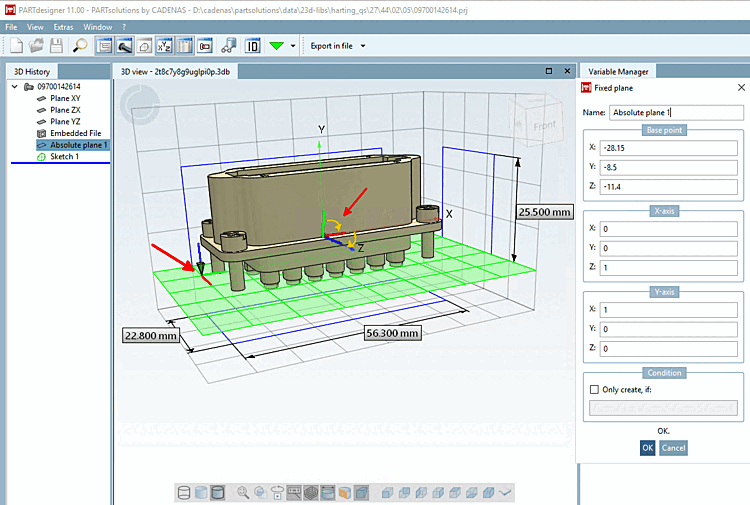

Original coordinate cross and reoriented coordinate cross of the connection point

Original coordinate cross and reoriented coordinate cross of the connection point

Result in E3

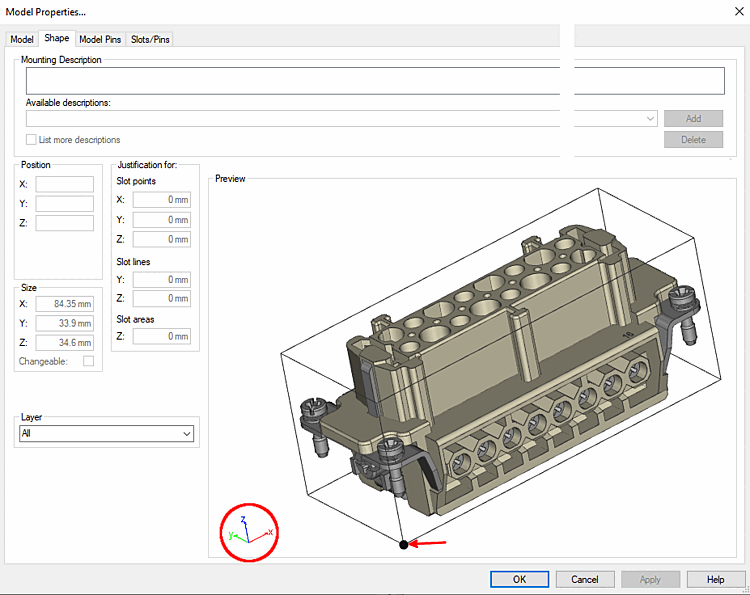

Model Properties - Correct orientation of axes and marked connection point

Model Properties - Correct orientation of axes and marked connection point

Check via PS3 file

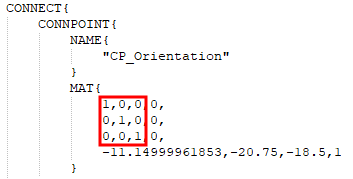

In an exported PS3 file you can check orientation and shift of connection point:

The connection point [Connection point] must now be classified.
