Purpose of Blend Feature

Optimization of the construction process

	Note
	The blend feature should always be the last step, meaning at the very end of modelling. (Only exception is, if there are complications with the tangent continuous.)

Enabling of blends in more installation situations than before
Reduction of features
Reducing the expenditure of time, particularly for use cases, in which a blend can not be easy integrated in the sketch
Simplifying the post-processing of blends
Simplifying the rendering

Example:

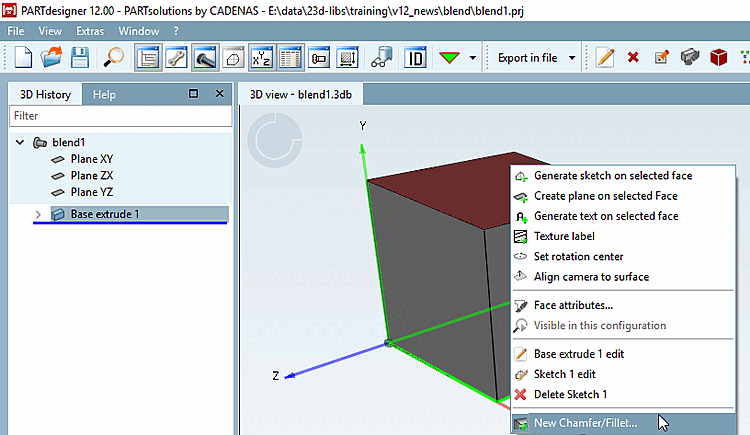

Call with context menu command "New Chamfer/Fillet..."

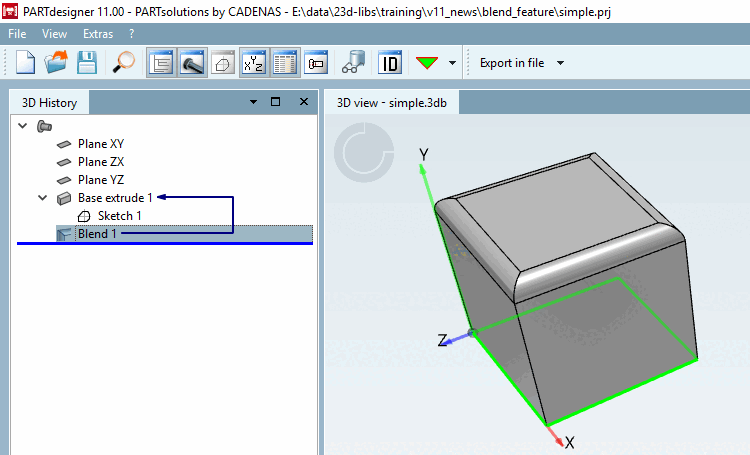

Blend created

Setting of face attributes like color or material is also possible.

All information on this feature can be found under Section 7.6.2.10, “ Blend (Insert Chamfer/Fillet...) ”. Please read this information carefully.
