Load the desired part in PARTdataManager.

Create the desired derivation.

Autocad DWG 2D

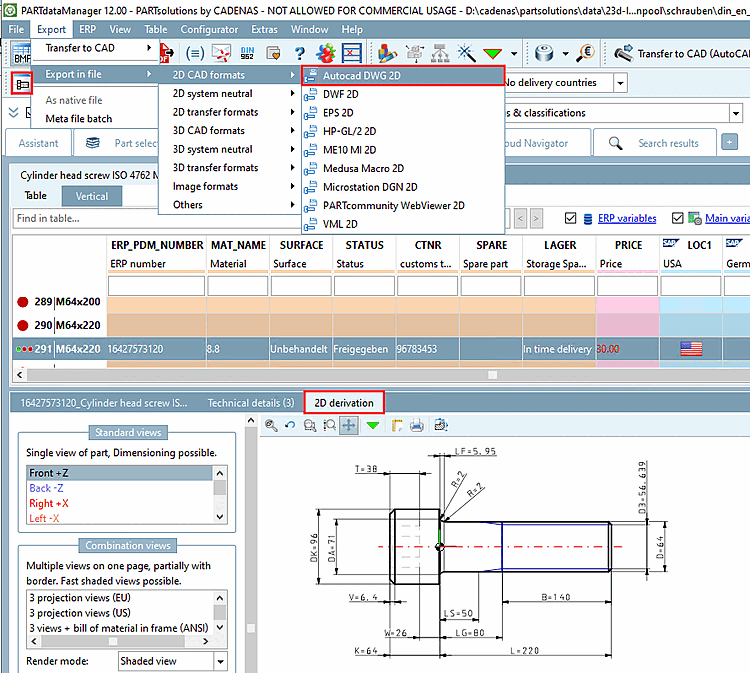

Select the Autocad DWG 2D option in the Export menu under Export to file [Export in file] -> 2D CAD formats.

→ The settings dialog of the same name opens.

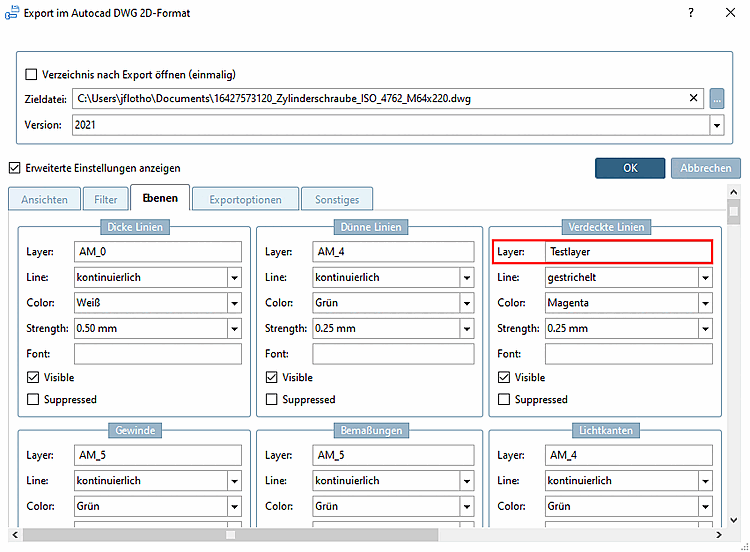

In this example, the layer name under Hidden lines [Hidden Lines] is set to "Test layer".

Transfer the part to AutoCAD.

Transfer to CAD (AutoCAD)

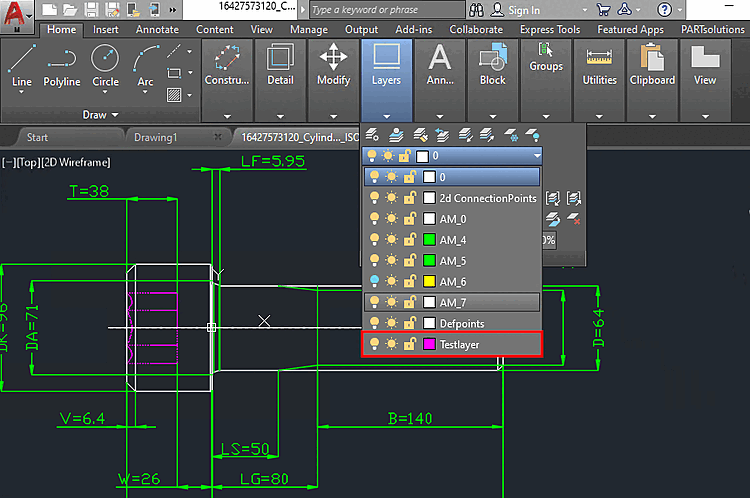

In AutoCAD, open the layer options.

→ The settings have been adopted.
