3.3. Function test of the PARTsolutions interface - activation / deactivation
Are the dialogs for interaction available?
If the ENTERPRISE 3Dfindit menu is not available, the corresponding interface may have been forgotten to be integrated during installation.
Check whether the interface has been saved under "$CADENAS\iface\"cadname".
Check in PARTadmin under CAD integration whether the integration is activated.

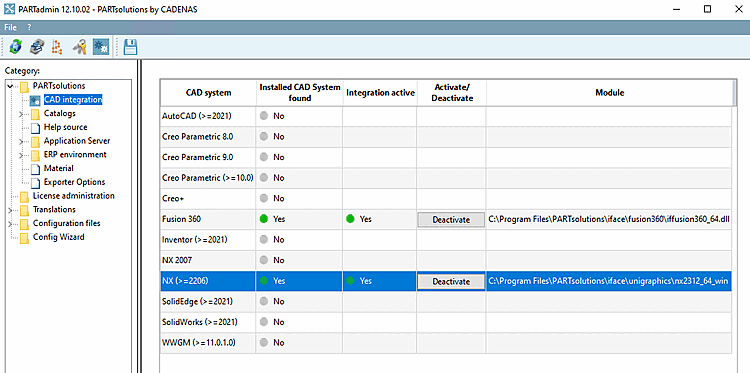

Example: The interface of "NX 2312-2412" is activated.
Note
If several CAD systems are combined in one line, they are ALL activated/deactivated together using the Activate/Deactivate button. There is only ONE integration for the combined CAD versions.
