3.3.1.5.1. The most important settings

	Tipp

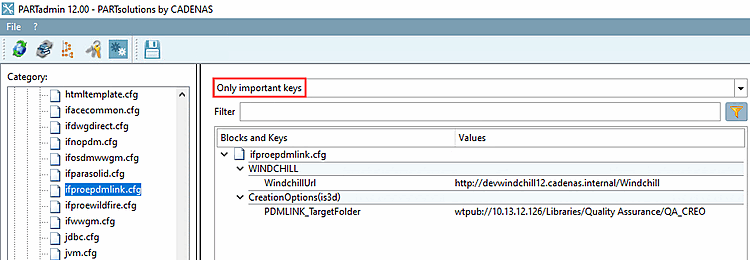

The most important keys will be displayed either when searching for the keyword "Simple" in the configuration file or when filtering in PARTadmin with Only important keys.

Tipp

The most important keys will be displayed either when searching for the keyword "Simple" in the configuration file or when filtering in PARTadmin with Only important keys.

Configuration (basics)

The configuration of the PDMLink specific settings can be performed under $CADEANS_SETUP/ifproepdmlink.cfg.

URL to Windchill Server: Block [WINDCHILL] -> Key "WindchillUrl". (Has to be identical with the URL set in above dialog.)

Checkin Folder on server: Block [CreationOptions(is3d)] -> Key "PDMLINK_TargetFolder".

With this option, the server where the checkins shall be performed is set. Set the entire path inclusive folders. The path has to be stated as follows:

wtpub://<Server Name>/<Products, Libraries, Projects,...>/<Context Name>/<Folder>

Wichtig

The setting is language-dependent!

For a German client, in the path, e.g. not "Libraries" has to be entered, but "Bibliotheken"!

Example:

PDMLINK_TargetFolder=wtpub://192.168.1.216/Libraries/Lib1/SubFolderLib1

	Wichtig
	If a folder is stated, it must exist. The same applies for the library.
